Stedi ST3301 PRO 24.5" 16 LED Light Bar Single Row

$260.00

Available Options


Calculate Shipping


Pick Up POA
Pick Up Available at our Show room at 8/419-425 Old Geelong Rd, Hoppers Crossing VIC 3029 upon order. Please give us a call on 03 9931 1160 for confirmation of stock before ordering.

BUILT TO SHINE

Our ST3301 Series 24.5 Inch LED Light Bar is designed to offer a high volume of light in the mid-range, with excellent visibility on the road shoulders. Compared to bars like our ST4K & ST3K (which have a longer beam distance but slightly less brightness in comparison) our ST3301 forms a larger diameter spot that blends homogeneously with its wide beam. The ST3301 range is perfectly suited for the customer that is concerned about wildlife running out from the road shoulders or those who need a huge amount of brightness and coverage in the mid short and mid-range.

STEDI Type X Sport 8.5 Inch LED Spot Lights
STEDI Type X Sport 8.5 Inch LED Spot Lights

SUPERIOR DESIGN. EXEMPLARY INNOVATION.

We thought that it would be time to take things up a notch! The STEDI ST3301 exemplifies the innovation that STEDI is known for, by making advancing strides on the popular ST3300 series. In addition to our revised reflectors, the ST3301 24.5 Inch showcases our improved lighting technology, all within a slick new look. The  ST3301 24.5 Inch houses 16 x OSRAM™ LEDs; the pinnacle of technological lighting sophistication. Oh, and did we mention colour temperature? We’ve achieved a strong yet neutral beam character, which maintains a pleasant temperature of 5600K. If you are hoping to dramatically lift your lighting game, then look no further.

ULTIMATE ILLUMINATION

Our ST3301 builds from the character of the ST3K and ST4K, by offering a higher Lumen output with an excellent mid-range volume. The ST3301 Pro packs a greater punch than its predecessor when it comes to light penetration, offering a light reach of up to 544m at the 1 Lux mark. With this increase of light, we also managed to maintain a streamlined design, keeping the weight of the 24.5" Bar at 2.49kg.

STEDI Type X Sport 8.5 Inch LED Spot Lights
STEDI ST3301 Pro LED Light Bar

UNMISTAKBALE PERFORMANCE. UNMISTAKABLY STEDI

For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance. STEDI have continued to keep at the forefront of LED lighting, making STEDI the leading brand born right here in Australia. Unquestionably, ST3301 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3301 PRO a quintessential component for any LED aficionado. We also provide black out covers for our ST3301 light bars. From our 18.6 Inch to the 41 Inch, we have got you covered! Ensure that your vehicle maintains ADR compliance and purchase an accompanying STEDI ST3301 Cover today!

ST3301 Pro 24.5 Inch Dimensions

STEDI ST3301 Pro 24.5 Inch 18 LED Light Bar Lux Graph

Unmistakable performance. Unmistakably STEDI.

For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance. STEDI has continued to keep at the forefront of LED lighting, making STEDI the leading brand born right here in Australia. Unquestionably, ST3301 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3301 PRO a quintessential component for any LED aficionado.

KEY TECHNICAL BREAKDOWN

  • Ingress Protection IP68 (Backed by a certificate of conformity),
  • Coordinated Colour Temperature 5600K - Excellent colour contrast.
  • Flood/spot/flood combination with 18 x LEDs
  • 4 Flood + 8 Spot + 4 Flood Reflector Distribution
  • Tough GE Lexan primary lens which 250 times the impact-resistant strength of glass and 30 times stronger than acrylic Poly-carbonate.
  • Waterproof Deutsch DT Connector

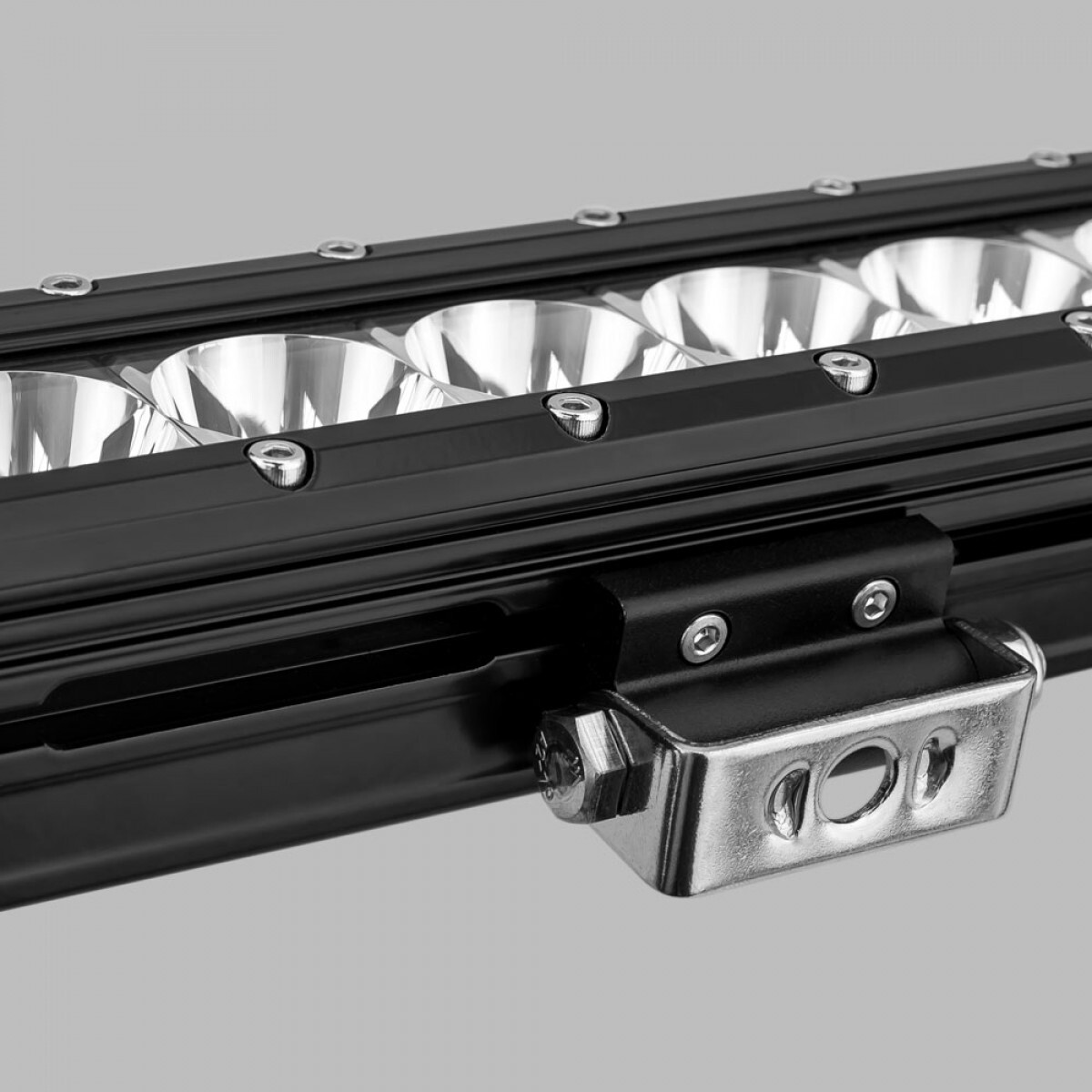

  • Adjustable Slide mounts and stainless steel side brackets included.
  • Guaranteed against electromagnetic (EMC) and radio frequency (RFI) interference

We are so confident you will love this product, price, quality, and performance, we are offering a 30-day money-back guarantee and a FULL 5 YEAR WARRANTY!

SPECIFICATIONS

LUMEN 13,600Lm (RAW) 7,650Lm (Effective)
PEAK INTENSITY (CANDELA) 295,936cd
OPERATING VOLTAGE 10-45V DC
WATERPROOF RATE IP 68
LED 16 x OSRAM™
COLOUR TEMPERATURE 5600K
MATERIAL Die-Cast Aluminium
LENS GE Lexan™
MOUNTING BRACKET Aluminium
BOLTS AND FITTINGS 3 Series Stainless Steel
FLOOD BEAM ANGLE 45° Degrees
SPOT BEAM ANGLE  11° Degrees
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 2.495kg
CURRENT DRAW 9.7A @ 13.6v

(LED3301-PRO-16L)

SKU LED3301-PRO-16L
Brand STEDI
Shipping Weight 3.0000kg
Shipping Width 0.650m
Shipping Height 0.150m
Shipping Length 0.100m
Shipping Cubic 0.009000000m3
