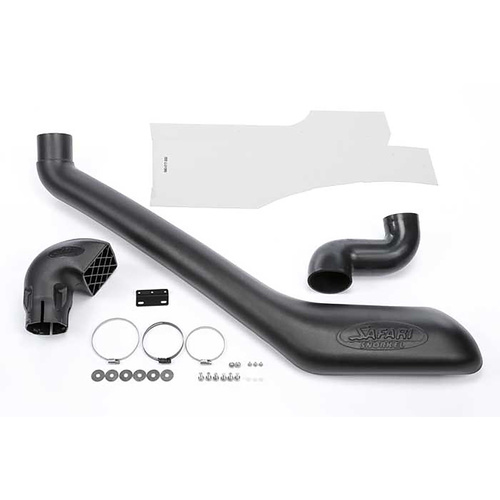

The SS1130HF Jeep Cherokee/Liberty 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of KJ 3.7L Petrol engines.

With the huge air flow demands of each engine in the Jeep KJ 3.7L Petrol Cherokee/Liberty, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Jeep Cherokee/Liberty design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Jeep Cherokee/Liberty 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Jeep Cherokee/Liberty snorkel breezes through the toughest off-road conditions on the planet.

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your KJ 3.7L Petrol engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Jeep Cherokee/Liberty 4WD Snorkel fitting guide with an accurate template for assisting with installation.

ITEM

PART NO.

DESCRIPTION

QTY

1

965-133-000

BODY - SNORKEL (SS1130HF)

1

2

000-135-800

3 ½" AIR RAM ASSEMBLY

1

3

965-032-000

BRACKET - UPPER MOUNTING

1

4

000-002-100

BOLT - HEX - 6mm x 1.0 x 14mm (SEMS)

2

5

000-958-550

POP RIVET - 4.8mm x 18mm

6

6

000-110

INSERT - PLASTIC

4

7

000-311-300

SSTUD - S/S 8mm x 1.25 x 25mm O/L

4

8

000-205-300

WASHER - BODY - 8.5mm x 32mm - S/S

4

9

965-024-000

NUT - NYLOC - 8mm x 1.25mm - S/S

6

10

965-025-200

PLATE - AIR INTAKE CONNECTOR

1

11

000-909

CLAMP - HOSE - 80/100mm

1

12

965-025-000

PLATE - BLANK-OFF (AIR CLEANER INLET)

1

13

000-951-550

SCREW - S/T - 4.8mm x 16mm

1

14

000-958-600

POP RIVET - PLASTIC

7

15

965-217-000

TEMPLATE - ENGINE BAY

1

16

965-217-200

TEMPLATE - INNER FENDER

1

17

965-017-000

TEMPLATE - FENDER PANEL (FRONT)

1

18

965-017-200

TEMPLATE - FENDER PANEL (REAR)

1

19

000-914/B

CLAMP - HOSE - SIZE 56 (BLACK)

1
SKU SS1130HF
Brand Safari 4x4
Shipping Weight 5.3000kg
Shipping Width 1.290m
Shipping Height 0.200m
Shipping Length 0.420m
Shipping Cubic 0.108360000m3
