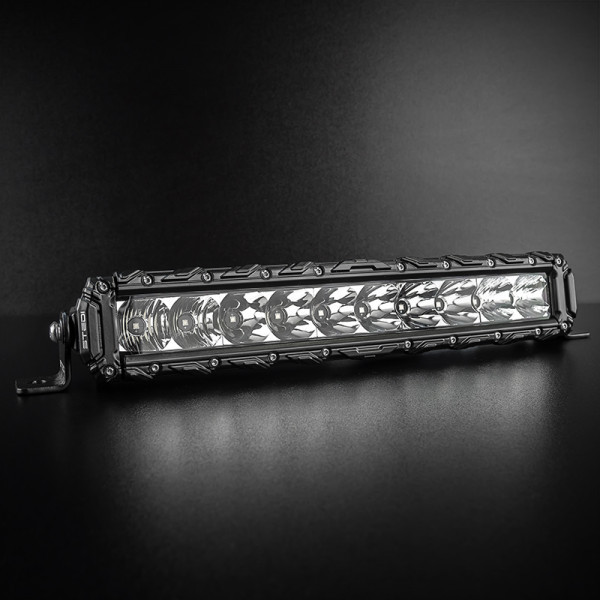

Introducing our all-new ST3K low profile LED bar range. Built on our hugely successful ST(X)K LED & reflector platform. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.

MARKET LEADING PERFORMANCE.

ST3K-10L features 10 of OSRAM’s® finest OSLON® LED, selected for unrivaled efficiency.

 2 Flood + 6 Spot + 2 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 303m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

Ultra-Low 52mm profile without the side brackets & 54mm with side brackets!

Backed by a 5 Year Replacement Warranty.

SPECIFICATIONS

LED

10 x Osram Oslon White

RAW LUMEN

4,900Lm

OPERATING VOLTAGE

10-30V DC

IP RATING

IP68

CURRENT DRAW

2.1A @ 13.6v

COLOUR TEMPERATURE (CCT)

5700 Kelvin

HOUSING MATERIAL

Aluminium Extrusion & Cast

LENS

GE™ Lexan

MOUNTING BRACKET

Powder Coated 3mm Stainess Steel

BOLTS AND FITTINGS

3 Series Stainless Steel

BEAM TYPE

Flood Spot Combo

LIFE SPAN

50,000 Hours

WEIGHT

1.650

OPERATING ENVIRONMENT

-40 - +50° Celsius

WHAT’S IN THE BOX

  • ST3K 11.5inch LED LIGHT BAR
  • Stainless Fasteners
  • Stainless Steel Side Mounting Brackets
  • Wiring Instructions
SKU LEDST3K-10L
Brand STEDI
Shipping Weight 2.0000kg
Shipping Width 0.530m
Shipping Height 0.110m
Shipping Length 0.130m
Shipping Cubic 0.007579000m3
