Stedi LED Type X Pro 8.5 Inch Driving Spot Lights (Pair)

$690.00
*Limited stock available.


Calculate Shipping


Pick Up POA
Pick Up Available at our Show room at 10/419-425 Old Geelong Rd, Hoppers Crossing VIC 3029 upon order. Please give us a call on 03 9931 1160 or email us at info@traxindustries.com.au for confirmation of stock BEFORE ordering ** Extra Shipping costs apply if the item is not in stock **

You only need one glance to realize that the sky was the limit when designing the STEDI TYPE-X ™ PRO (Registered Design Number 201814836 & Registered Trademark)

Back in 2016 we released the original Type-X™ and completely disrupted the high performance driving light market. If you haven’t heard about the legendary reputation of V1.0 TYPE-X™, start by checking out the Youtube comparisons. With the introduction of our PRO Edition, we are yet again redefining the auxiliary driving light category. Our all-new Type-X™ PRO edition epitomizes our commitment to maximising light output and reliability at levels that surpass the most respected players in the industry.

1.15KM BEAM THROW

Using the latest optic simulation modeling, the reflector geometry was tweaked over and over again to achieve a highly-functional beam pattern.  No doubt the attention grabber is the unrelenting beam distance of 1.155km, however, the real strength of our Type-X™ PRO is in mid to long-range light distribution that really sets it apart. Astonishing beam throw coupled with a homogeneous wide beam will have you insist on driving only when the sun's down.

YOUR LIGHTS YOUR WAY.

Pink? Green? Blue? Orange? Grey or all Black? The choice is yours. We've designed the inner ring fasteners to be independent of the main sealing structure, allowing you to change the colour that best suits. We've included grey and orange in the kit to get you started, or if you prefer all black, simply don't fit any ring at all.  Our coloured filters and iconic STEDI smile covers are backward compatible too.

Additional colours sold separately.

A WOLF IN WOLF'S CLOTHING

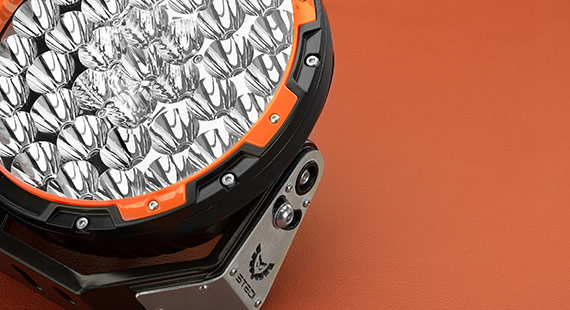

Forget folded steel brackets 3mm 4mm or 5mm it's all yesterday's news. Type-X™ PRO is all about pushing boundaries, the bracket system is a 10mm thick high-pressure die-cast aluminum marvel of engineering. Ribbed in all the right places to ensure no vibration and no prospect for fatigue. Our Type-X™ PRO bracket was designed to withstand extreme and prolonged corrugations time and time again. True to STEDI's signature design principles we’ve added brushed stainless steel shoulder plates, which will look just as comfortable on a tricked out 70 series as it will be mounted to a PRO race buggy.

PROPER TESTED PHOTOMETRIC DATA

Don’t confuse our Isolux and Lumens with the baseless numbers circulating around the internet. Our published specifications are comprehensively tested by a  photometric laboratory. We stand by our photometric data.

Specifications

LED 37 x Oslon High-Flux LED
RAW LUMENS 26,270 (Pair)
TESTED LUMENS 15,870 (Pair)
AMP DRAW  10.4A @ 13.2v (each)
POWER DRAW 137W
CANDELA 1,334,025cd
BEAM PATTERN 6 x Spread 31 x Pencil Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT)  5700K
VOLTAGE COMPATIBILITY  12v & 24v
LUMEN MAINTENANCE  50,000 LM-80
WEIGHT 2.860kg (each)
PHOTOMETRIC DATA
10 m 13,340 Lx
50 m  533 Lx
200 m 33 Lx
300 m 14 Lx
400 m 8 Lx
1,000 m 1.3 Lx
1,155 m 1 Lx

(ledtypre-x-pro)

SKU ledtypre-x-pro
Brand STEDI
Shipping Weight 10.6200kg
Shipping Width 0.570m
Shipping Height 0.170m
Shipping Length 0.400m
Shipping Cubic 0.038760000m3
