Lightforce Custom Built replacement switch fascia for the Ford Ranger PX2 PX3 & Ford Raptors.

This replaces the existing fascia that is located in the central lower dash that has two 12 volt outlets and is compatible with all 37 PX MK2-3 models and the three Ford Everest models, including the Ford Raptors.

The fascia is a direct replacement injected moulded ABS/PC panel, with zero modification required to the existing surrounding console, maintaining the original equipment manufacturer (OEM) look of the vehicle. It will accommodate 3 standard OEM style switches.

The standard switch used is the popular and readily available late model aftermarket Toyota switch (Lightforce part # CBSWTY2) as used in the 200 Series Landcruiser and Prado 150.

A single switch (CBSWTY2) and two switch blanks are provided with the fascia; the blanks have been designed to accommodate the REDARC® Tow-Pro remote brake controller. On the back of the blanks will be two corresponding indents to aid in drilling the two required holes, and extra blanks are available.

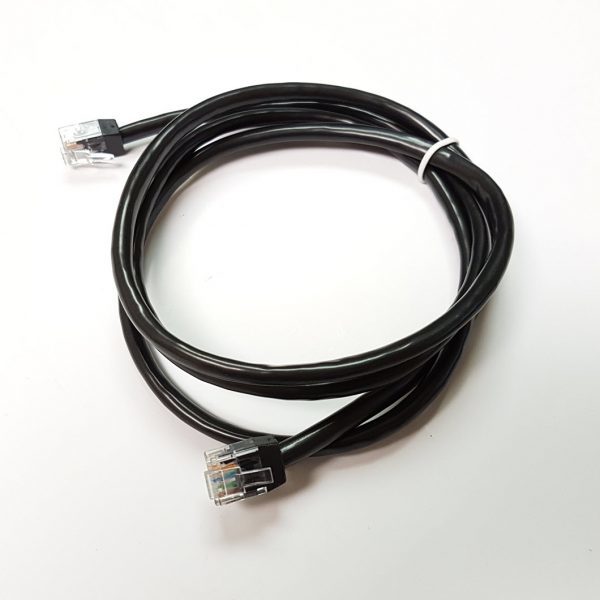

When fitting the Tow-Pro remote brake controller it is recommended purchasing the optional network cable (P#CBRJ45) as the cable supplied in the original kit will not fit due to space restrictions within the console.

The optional network cable (P#CBRJ45) is 1200mm long with a wire gauge of 24AWG and is designed to fit neatly within the limited space available.

The finish of the replacement switch fascia is matte black, and installation takes approximately 30 minutes and only requires a 7mm ring spanner and medium screwdriver as the surrounding panels simply pull off (a little force is required as each panel has at least 6 retaining clips).

The fascia relocates in the exact same mounting points as the original so no additional fixtures or adhesives are required.

The two existing 12v outlets will need to be removed from the original fascia and refitted into the new fascia that incorporates the switches. This is where the medium screwdriver is required.


In addition to the switch blank and switch, our dual 2.1 amp USB charger is also compatible with this fascia. However the USB charger will only fit in the centre position. It is uitable for charging high powered devices like tablets, mobile phones and gaming consoles or powering navigation units and in car DVR’s.

Dual 2.1 amp (4.2A in total) outputs that are fully regulated and surge protected.

Independent illumination that is fully dimmable via existing dash light circuit, separate from the main input power, so illumination is not always on; a unique feature of our product.

All cables are over 1.5 metres long, USB power input (red wire) in is fitted with a Micro-2 fuse tap for direct fitment to the fuse box. Earth cable (black wire) is pre-terminated with a ring terminal and independent LED illumination (blue wire) for connection to existing dash light circuit.


  • Dual 2.1A (4.2A) outlets
  • 5.1 Volts regulated output
  • 1.5 Metre long cables
  • 5 Amp Micro-2 fuse tap for the dual USB outlets
  • 2 Amp fuse for illumination
  • Independent blue LED illumination
  • Matt black face


SKU cbfascia
Brand Lightforce
Shipping Weight 0.3400kg
Shipping Width 0.300m
Shipping Height 0.080m
Shipping Length 0.200m
Shipping Cubic 0.004800000m3
