Offroad Downunder Battery Tray for Ford PX Ranger

Under Rear Seat Dual Cab Only


Available Options

Calculate Shipping

Standard Shipping - 2 - $30.00
Standard Delivery Australia wide via Australia Post. Unless noted in the delivery instructions, the goods will be left at the front door if unattended. Please track your parcel to confirm delivery date.

Under rear seat model (POWDERCOATED)
Vehicle/Models: Ford PX Ranger & Mazda BT50 ,including PX Series 2 Ranger. (Dual Cab ONLY)
Year: From Oct 2011 onwards, including 2015 PX series 2 models – current
Engines: N/A

Off Road Downunder Pty Ltd is the first company to introduce a battery tray under the rear seat of the latest PX Ranger and Mazda BT50’s. We have designed the tray to install an AGM type battery (Optima Yellow top D34) in the cabin area, due to the limitations of space in the engine compartment. The Optima AGM battery is fully sealed and safe for in cabin usage.

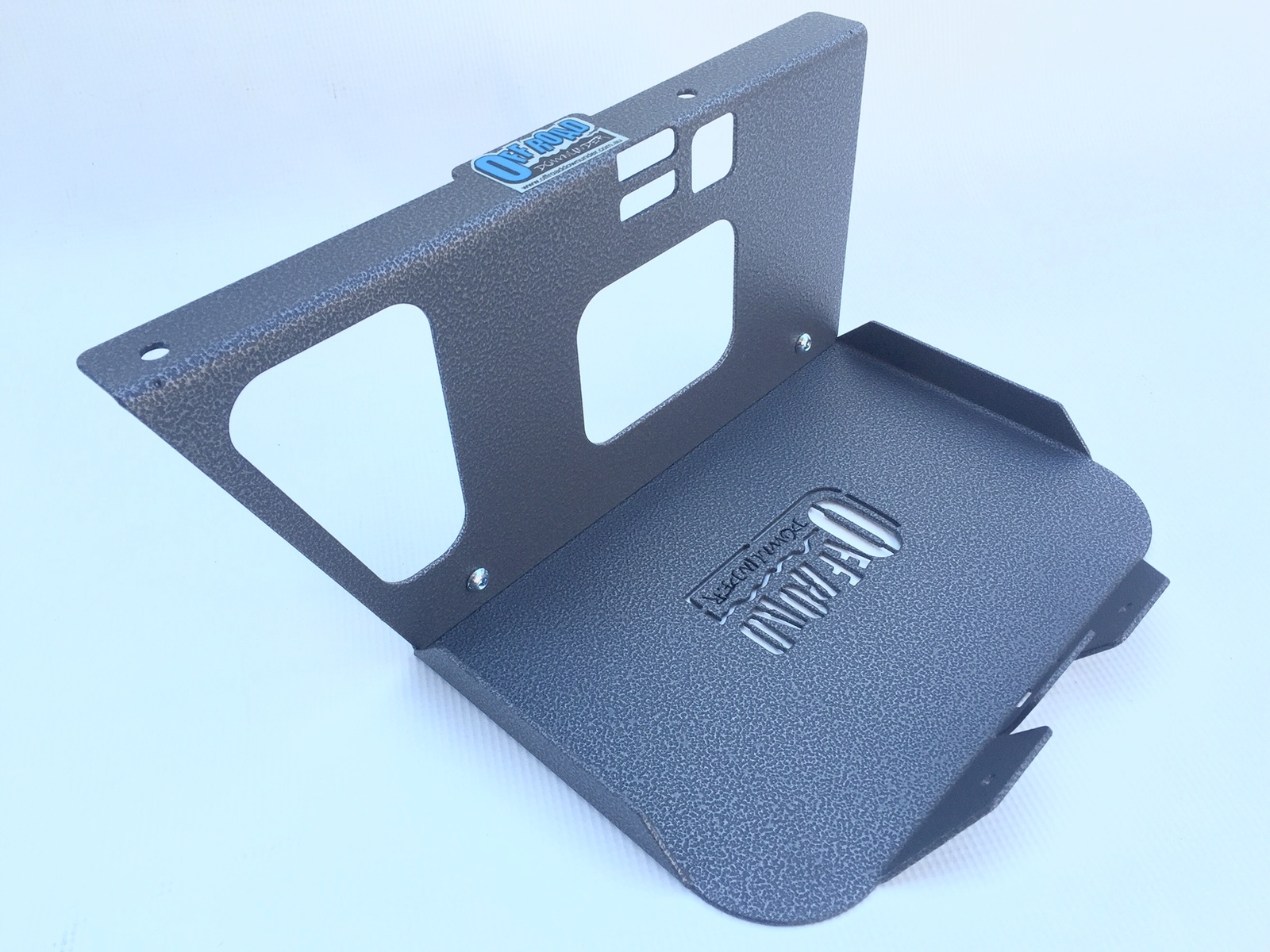

  • Precision laser-cut battery tray with “OFFROADDOWNUNDER LOGO” cut out in base tray.
  • Matching cut outs in side bracket to correspond with vehicle body, to allow easy cabling access
  • Australian made using 2mm Australian mild steel
  • Designed & manufactured by Off Road Downunder Pty Ltd since November 2011.

Kit Includes:

  • Battery tray base and side mounting bracket
  • 2 x Rubber battery terminal covers (positive & negative)
  • Heavy duty Cam-buckle strap (Australian Made)
  • Installation bolt kit, now with button head bolts.
  • Installation instructions

Recommended auxiliary battery / size:

  • Optima yellow top D34 (AGM) ONLY


Under drivers side rear seat in compartment
Utilises factory mounting holes + (2) extra 5mm diameter holes


SKU btfpxus
Brand Off Road Down Under
Shipping Weight 2.5400kg
Shipping Width 0.390m
Shipping Height 0.070m
Shipping Length 0.220m
Shipping Cubic 0.006006000m3
