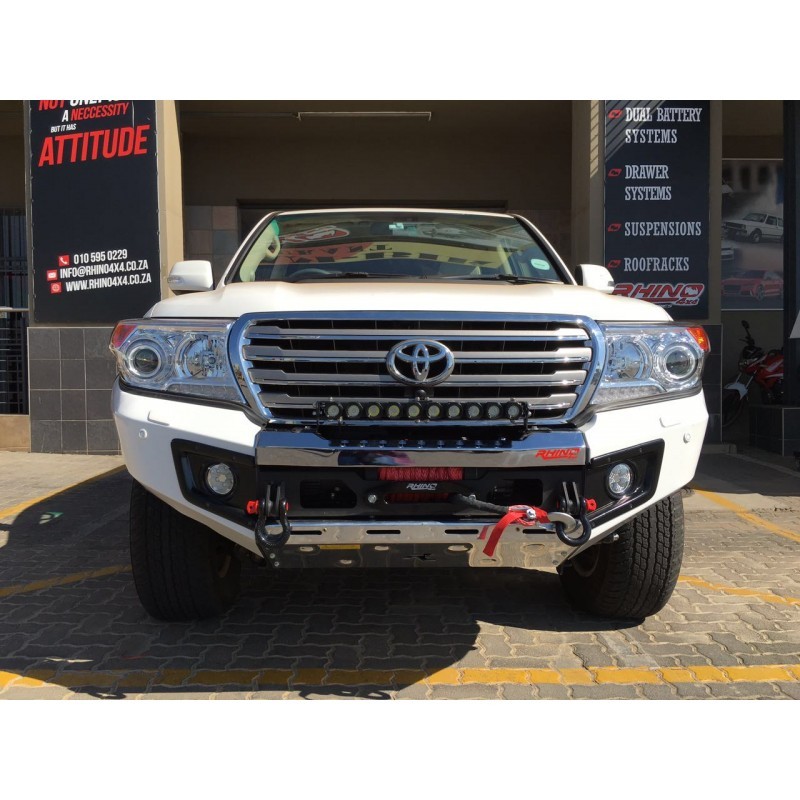

Rhino4X4 9,500lb Winch with Dyneema Rope & Wireless Remote
29kg Winch IP68 rated - 5 year Warranty
NEED A WINCH.... LOOK NO FURTHER
With all the included features, great price and added looks it’s hard to go past a rhino winch.
-Tough heavy duty materials
-9500 lbs
-Dyneema rope
-wired and integrated wireless remote control
-Internal braking system
-Robust gearing
-IP68 rated to ensure no dust and water ingress
-Backed by our Huge 5 year warranty
|
Specifications |
|
|
Rated line pull: |
9500 LBs single line. |
|
Motor: |
Permanent Magnetic 6.0 hp /4.4kw,12V DC |
|
Gear Train: |
3 stage planetary |
|
Gear ratio: |
265:1 |
|
Clutch: |
Sliding Ring gear |
|
Braking action: |
Automatic in drum |
|
Fairlead: |
Aluminum hawse fairlead for synthetic rope |
|
Synthetic rope: |
Ø9.5mmX1m |
|
Drum size: |
2.5"×9.0"(63mm×224mm) |
|
Dimensions: |
21.4"×6.3"×7.4" |
|
Mounting bolt |
10"×4.5"(254mm×114.3mm) |
|
Battery: |
Recommended 650 CCA minimum for |
|
N.W: |
64lbs (29kgs) |
|
Packing: |
620mm X 200mm X 390mm |
(101828)
| SKU | 101828 |
| Brand | Rhino4X4 |
| Shipping Weight | 30.0000kg |
| Shipping Width | 0.630m |
| Shipping Height | 0.400m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.063000000m3 |
