Roadvision’s new Stealth Range of light bars represent the best performance from our new projector style lens in a light weight tough diecast aluminium housing.

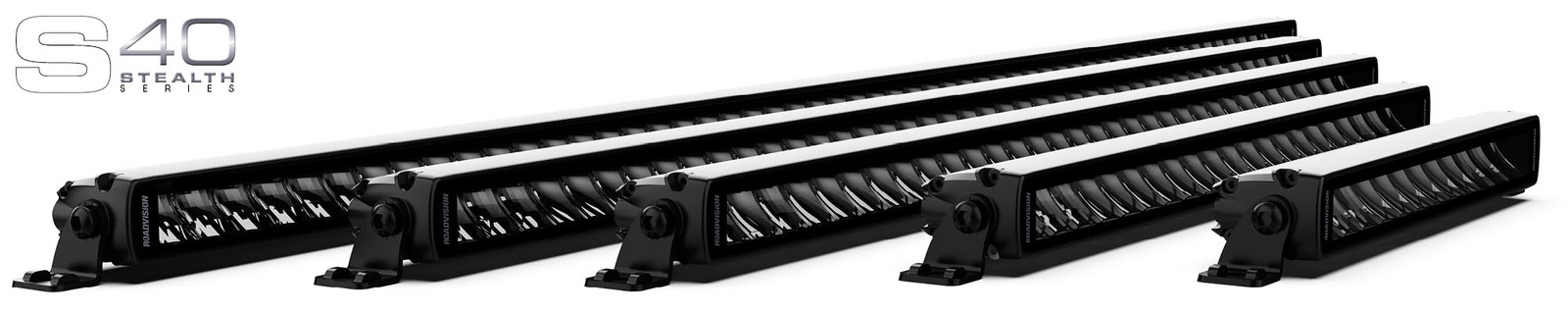

S40 SERIES – RANGE SPECIFICATIONS
The S40 Series are a super compact single row light bar designed with a long range beam penetration and lower short range intensity – perfect for highway driving.
Suitable for use on trucks, 4×4’s and SUV’s in licence plate and roof rack mounts, and applications where a larger light profile bar just won’t fit.
The S40 delivers outstanding lux performance from a very small package reaching up to 638m @ 1 lux from a 21” bar.
- Low profile with smoked lens and blackout mounting hardware for a STEALTH on vehicle look
- Roadvision’s best-in-class Platinum Range, backed by a 7-year warranty
- Projector Beam Technology producing more power from a smaller package
- Single row light bar producing up to 27500lm of instant light output
- Available in 7” to 52” models
- Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Advanced Thermal Management Technology
- Light weight and tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- 9 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

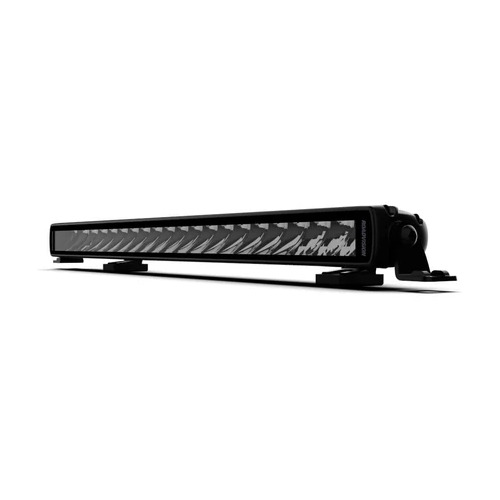

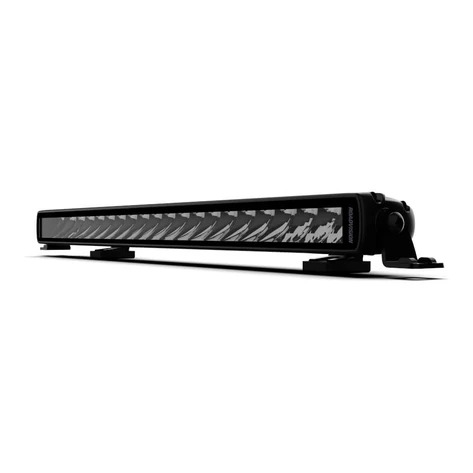

|Description||S40 Series 21" LED Light Bar|
|Beam Type||Projector Beam|
|Light Source||21x3 Watt Osram LED's|
|Current Draw Amps||6.6~9.2A @ 13.8V|
|Voltage Input||10-30V DC|
|Bar Length||21" (522mm)|
|Wiring||2 Pin Deutsch Plug|
|Maximum Lux @ 10m||4065 Lux|
|Meters @ 1 Lux||638m|
|Meters @ 0.5 Lux||1275m|
|Unit Of Measure||ea|
