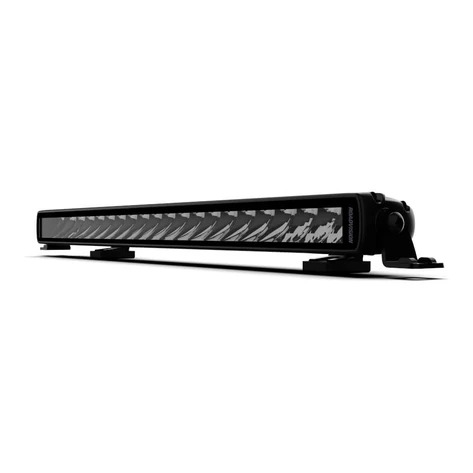

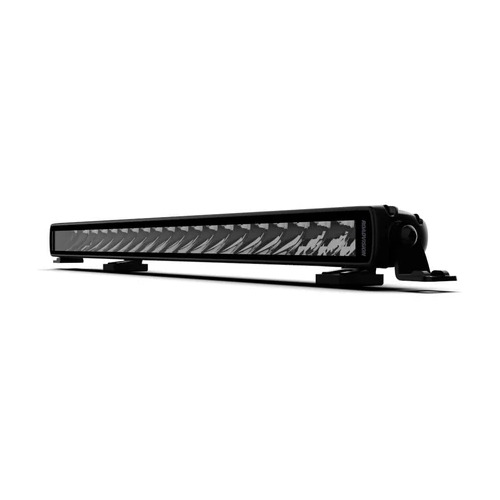

Roadvision LED Bar Light 32" Stealth 40 Series Combo Beam

Roadvision’s new Stealth Range of light bars represent the best performance from our new projector style lens in a light weight tough diecast aluminium housing.



S40 SERIES – RANGE SPECIFICATIONS

The S40 Series are a super compact single row light bar designed with a long range beam penetration and lower short range intensity – perfect for highway driving.

Suitable for use on trucks, 4×4’s and SUV’s in licence plate and roof rack mounts, and applications where a larger light profile bar just won’t fit.

The S40 delivers outstanding lux performance from a very small package reaching up to 638m @ 1 lux from a 32” bar.





FEATURES

• Low profile with smoked lens and blackout mounting hardware for a STEALTH on vehicle look
• Roadvision’s best-in-class Platinum Range, backed by a 7-year warranty
• Projector Beam Technology producing more power from a smaller package
• Single row light bar producing up to 27500lm of instant light output

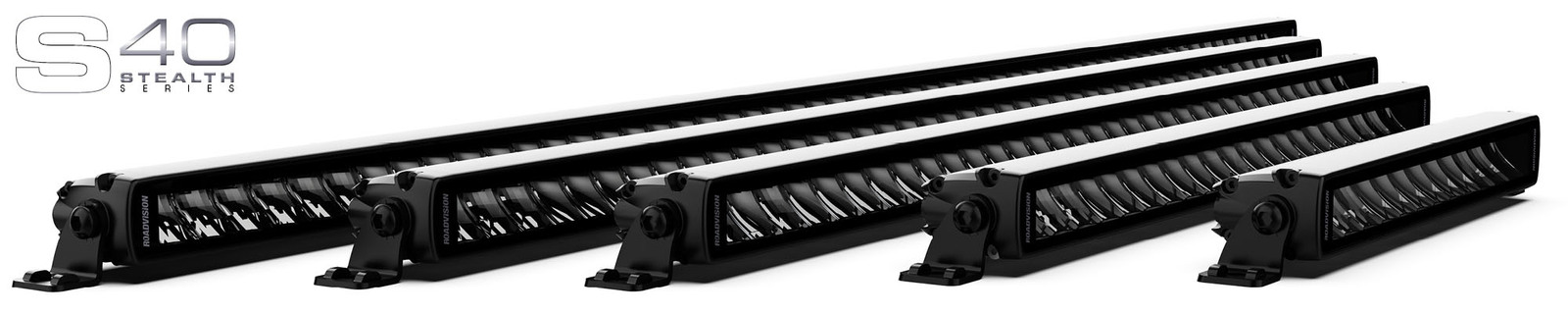

• Available in 7” to 52” models
• Osram Hi-Lux LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input & super low current draw
• 50,000 hour LED lifespan with solid state technology
• Advanced Thermal Management Technology
• Light weight and tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• 9 position adjustable anti-vibration end mount system & low profile slide mounts
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

Description	S40 Series 32" LED Light Bar
Beam Type	Projector Combo 6 Driving / 27 Spot
Maximum Lumens	9211lm
Beam Distance	1568m
Maximum Watts	150W
Light Source	33x3 Watt Osram LED's
Current Draw Amps	10.3~14.4A @ 13.8V
Voltage Input	10-30V DC
Dimensions AxBxC	798x55x40mm
Bar Length	32" (798mm)
Wiring	2 Pin ATP Plug
Maximum Lux @ 10m	6150 Lux
Meters @ 1 Lux	784m
Meters @ 0.5 Lux	1568m
