Stedi ST3301 PRO 27.5" 18 LED Light Bar Single Row

$290.00

Available Options


Calculate Shipping

Advancing from our popular ST3301 comes the new STEDI ST3301 Pro. With a new look and improved lighting technology, in addition to our revised reflectors, the ST3301 Pro will increase your lighting performance dramatically.

STEDI ST3301 Pro LED Light Bar
STEDI ST3301 Pro LED Light Bar

BEAM CHARACTERISTICS

Our ST3301 Pro builds from the character of the ST3K and ST4K, by offering a higher Lumen output with an excellent mid-range volume. The ST3301 packs a greater punch than its predecessor when it comes to light penetration, offering a light reach of up to 600m at the 1 Lux mark. With this increase of light, we also managed to maintain a streamlined design, keeping the weight of the 27.5" Bar at 2.80kg.

COLOURS OF EXPRESSION

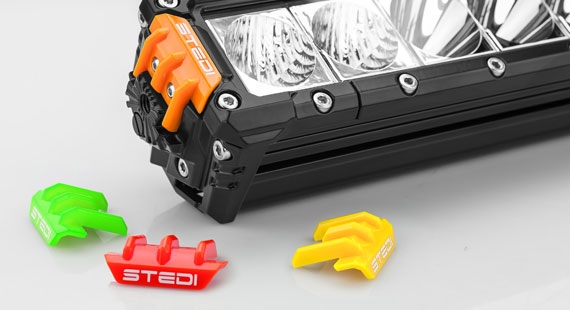

Add your own personal colour combination with our customisable side caps. Grey and STEDI orange caps are included, and when you get sick of those, indulge yourselves with the green, blue, and red caps which are available to purchase separately.

STEDI ST3301 Pro LED Light Bar Colour Caps

ST3301 Pro 27.5 Inch Dimensions

STEDI ST3301 Pro 27.5 Inch 18 LED Light Bar Lux Graph

Unmistakable performance. Unmistakably STEDI.

For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance. STEDI has continued to keep at the forefront of LED lighting, making STEDI the leading brand born right here in Australia. Unquestionably, ST3301 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3301 PRO a quintessential component for any LED aficionado.

KEY TECHNICAL BREAKDOWN

  • Ingress Protection IP68 (Backed by a certificate of conformity),
  • Coordinated Colour Temperature 5600K - Excellent colour contrast.
  • Flood/spot/flood combination with 18 x LEDs
  • 4 Flood + 10 Spot + 4 Flood Reflector Distribution
  • Tough GE Lexan primary lens which 250 times the impact-resistant strength of glass and 30 times stronger than acrylic Poly-carbonate.
  • Waterproof Deutsch DT Connector
  • Adjustable Slide mounts and stainless steel side brackets included.
  • Guaranteed against electromagnetic (EMC) and radio frequency (RFI) interference

We are so confident you will love this product, price, quality, and performance, we are offering a 30-day money-back guarantee and a FULL 5 YEAR WARRANTY!

SPECIFICATIONS

LUMEN 15,300Lm (RAW) 8,250Lm (Effective)
PEAK INTENSITY (CANDELA) 360,000cd
OPERATING VOLTAGE 10-45V DC
WATERPROOF RATE IP 68
LED 18 x OSRAM™
COLOUR TEMPERATURE 5700K
MATERIAL Die-Cast Aluminium
LENS GE Lexan
MOUNTING BRACKET Aluminium
BOLTS AND FITTINGS 3 Series Stainless Steel
FLOOD BEAM ANGLE 45° Degrees
SPOT BEAM ANGLE  11° Degrees
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 2.800kg
CURRENT DRAW 11.8A @ 13.6v

(LED3301-27-18L)

SKU LED3301-27-18L
Brand STEDI
Shipping Weight 3.5000kg
Shipping Width 0.100m
Shipping Height 0.150m
Shipping Length 0.750m
Shipping Cubic 0.011250000m3
